Selecting the appropriate manufacturing process is essential for product quality, cost-effectiveness, and time-to-market. Thermoforming and injection molding are two prevalent methods for producing plastic components, each offering distinct advantages and considerations. Understanding their differences can guide you in making an informed decision for your production needs.
Overview of Thermoforming and Injection Molding
Thermoforming and injection molding are two of the most widely used manufacturing processes for creating plastic parts. Each method has its unique advantages, making them suitable for specific applications depending on factors like production volume, part complexity, and budget. Gaining a clear understanding of these processes is key for selecting the one that best suits your project’s needs.
| Feature | Thermoforming | Injection Molding |
|---|---|---|
| Process Description | Heating a flat plastic sheet until pliable and forming it over a single-sided mold. | Melting plastic pellets and injecting them into a multi-part mold under high pressure. |
| Tooling | Single-sided molds, faster and less expensive to produce. | Double-sided molds, complex and costly but durable. |
| Ideal Applications | Larger parts with simple geometries or mid-volume runs. | Smaller, more complex parts or high-volume production. |
| Cost Considerations | Lower tooling costs, and higher per-unit cost for low volumes. | Higher tooling costs, and lower per-unit cost for high volumes. |
Thermoforming
Thermoforming involves heating a flat plastic sheet until it becomes pliable and forming it over a mold. This method uses single-sided molds, allowing for faster tooling and lower costs. Thermoforming is ideal for producing larger parts with simple geometries or mid-volume runs.
Injection Molding
Injection molding involves melting plastic pellets and injecting them into a multi-part mold under high pressure. This method is better suited for complex, small, or high-volume products due to its ability to produce precise and consistent components.
Key Differences Between Thermoforming and Injection Molding
When choosing between thermoforming and injection molding, it’s essential to understand how they differ across factors like cost, lead time, production volume, and design complexity. Each process offers unique advantages, making some better suited for specific applications.
Tooling Investment and Production Volume
Thermoforming typically requires a lower tooling investment due to its use of simple, single-sided molds, making it a cost-effective option for low to moderate part volumes, generally between 250 and 5,000 units annually. The reduced complexity of the molds also shortens lead times and lowers upfront costs, making thermoforming ideal for small to mid-scale production runs.
In contrast, injection molding involves higher tooling costs because of the complex, double-sided molds that are required. However, this initial investment is offset by a lower per-unit manufacturing cost, making injection molding more economical for large production volumes exceeding 3,000 to 5,000 units per year.
Impact of Part Size
Part size plays a significant role in determining the most suitable manufacturing process. Below is a comparison of how thermoforming and injection molding handle larger components:
| Feature | Thermoforming | Injection Molding |
|---|---|---|
| Tooling Complexity | Minimal complexity, even for large parts. | High complexity as part dimensions grow. |
| Cost Impact of Size | Relatively stable costs, making it ideal for sizable parts. | Costs escalate significantly with size due to intricate mold designs. |
| Suitability for Large Parts | Highly suitable for large components. | Less practical for large parts due to high costs and engineering requirements. |
When choosing between thermoforming and injection molding for larger components, thermoforming stands out as the more cost-effective option. Its simpler tooling ensures stable costs even as part dimensions increase, making it ideal for producing sizable parts. In contrast, injection molding becomes cost-prohibitive for large components due to the need for highly engineered molds and more complex machinery.
Design and Technical Considerations
Thermoforming offers flexibility in accommodating complex part geometries and large sizes with minimal impact on lead time and cost. It is capable of reproducing intricate details and can produce parts with varying wall thicknesses. Additionally, thermoformed parts are produced with less internal stress compared to injection-molded parts, which can be advantageous for certain applications.
Injection molding, on the other hand, is ideal for parts requiring uniform wall thickness and high precision. The process allows for consistent part repeatability and is well-suited for producing small, intricate components with tight tolerances. However, the requirement for uniform wall thickness can be a limitation for certain designs.
Lead Time and Time-to-Market
Thermoforming generally offers faster lead times, typically around 6 to 12 weeks, due to the simpler tooling and setup processes involved. This can be beneficial for rapid prototyping and getting products to market more quickly. In contrast, injection molding has extended lead times, often up to 24 weeks, because of the complexity involved in constructing the two-sided molds and associated auxiliary requirements.
Material Selection and Surface Finishing
Both thermoforming and injection molding can utilize a wide range of materials, but the form and processing of these materials differ significantly:
- Thermoforming Materials: Thermoplastic sheets such as ABS, HIPS, PETG, and polycarbonate are commonly used. The sheet format allows for easy handling and processing, with the ability to add textures or patterns directly to the surface during the forming process.
- Injection Molding Materials: Thermoplastic and thermosetting resin pellets are melted and injected into molds, enabling high precision. This process supports a broader range of materials, including engineering-grade plastics like nylon, PEEK, and polypropylene, making it suitable for parts requiring specific mechanical or thermal properties.
Thermoforming often requires secondary operations like trimming or additional finishing for a refined look. In contrast, injection molding can produce parts with superior surface finishes directly out of the mold, often eliminating the need for further processing.
Applications and Industry Use
Both thermoforming and injection molding are widely employed across multiple industries. Their suitability depends on part requirements and production volumes. The table below highlights typical applications for each process:
| Industry | Thermoforming Applications | Injection Molding Applications |
|---|---|---|
| Automotive | Dashboards, door panels, and other large components. | High-precision parts like connectors and sensors. |
| Medical | Trays and equipment enclosures. | Small, intricate components for devices and tools. |
| Consumer Products | Packaging and retail displays. | Plastic cutlery, bottle caps, and detailed items. |
| Industrial | Equipment covers for machinery and tools. | Small mechanical parts like gears and electronic housings. |
Environmental Impact and Sustainability Considerations
Environmental considerations are increasingly important when selecting a manufacturing process. Here’s how thermoforming and injection molding compare in terms of sustainability:
- Material Waste Generation: Thermoforming often generates less waste as excess material can be recycled, whereas injection molding may have more waste in the form of sprues and runners.
- Energy Consumption: Thermoforming is generally more energy-efficient, requiring less heat and pressure compared to injection molding.
- Recyclability: Both methods can use recyclable materials, but the simplicity of reusing trimmed material in thermoforming can make it a greener option.
Choosing the Right Process
When deciding between thermoforming and injection molding, the following factors should guide your choice:
- Budget: If your project has a limited budget for tooling, thermoforming is often the better option due to its lower initial investment.
- Production Volume: For high-volume production, injection molding offers better economies of scale with lower per-unit costs.
- Part Size and Complexity: Larger parts with simpler designs are better suited for thermoforming, while smaller, intricate parts benefit from the precision of injection molding.
- Lead Time: If you need a faster time-to-market, thermoforming’s shorter lead times make it the preferable choice.
Driving Efficiency with Belovac

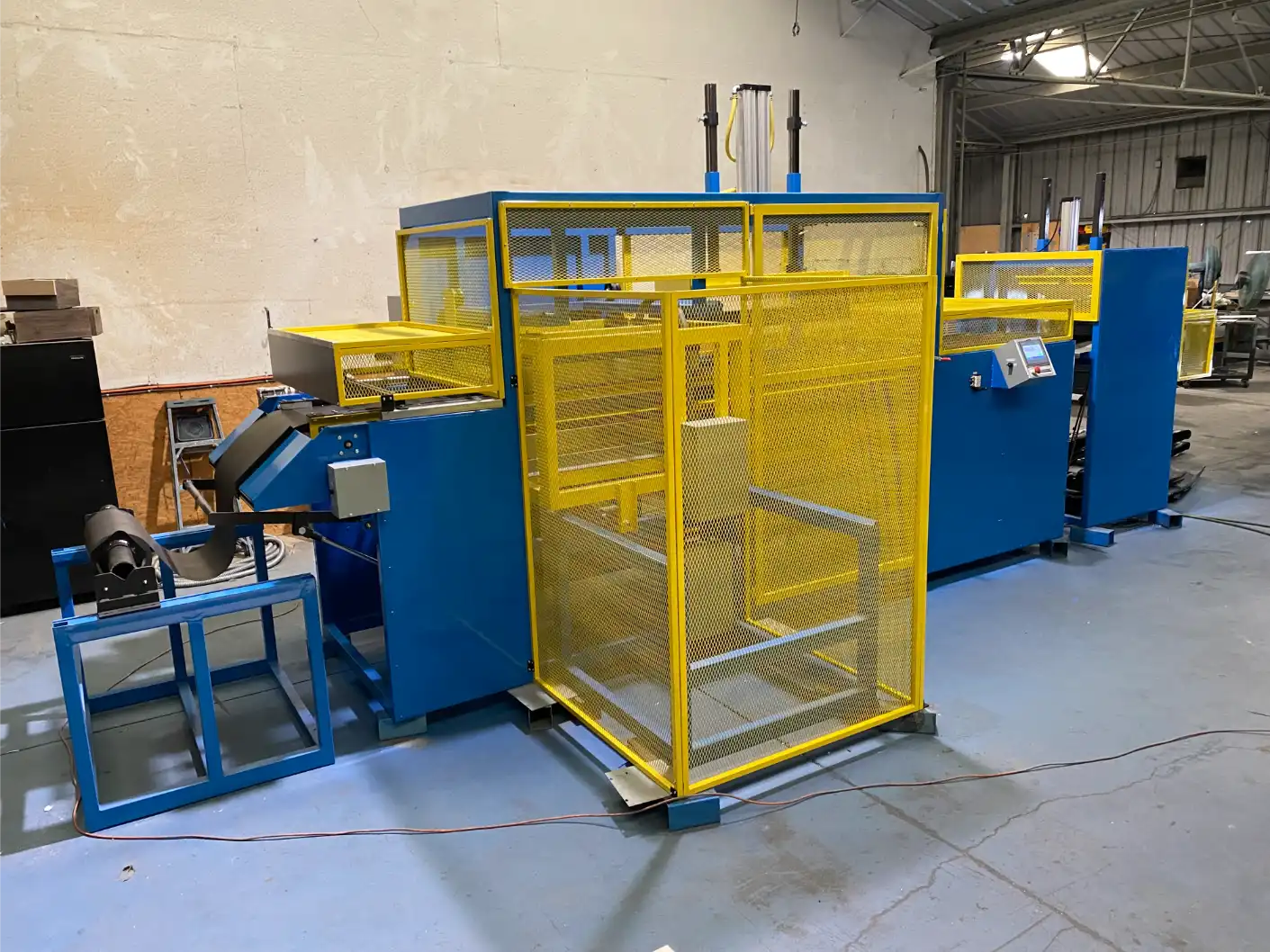

Belovac provides innovative thermoforming solutions designed to enhance production efficiency and meet diverse industry needs. With over 30 years of expertise, we offer:
